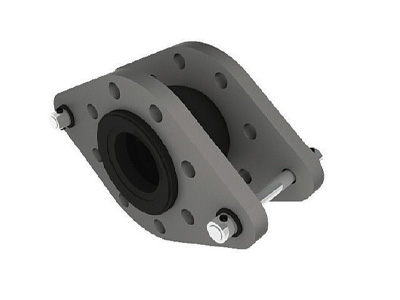

S-Flex Tied Flanged Pump Flexible
S-Flex Pump Flexibles are installed to reduce vibration and noise levels caused by “Plant” upon which they are fitted. These are suitable for use on systems carrying chilled and heated water. Please see above for temperature and pressure Limits-Flex units are not suitable for use with potable water, water with oil additives, compressed air and food applications.
S-Flex units are manufactured from spherical moulded EPDM, which is a soft compound to offer a high isolation efficiency and high noise absorbing properties.
The S-Flex units tied type has specially designed anti-tamper tie bars. This will only allow the units to be installed at their optimal length and avoid elongation of the unit. These units are 16 bar rated.
The units are a full bore thus removing pressure drop problems. The EPDM rubber is nylon re-inforced, and has a steel wire re-inforced collar.
Flanges BZP coated carbon steel PN16.
S-Flex units have a 10 year design life when used on LTHW systems.
S-Flex units are stamped with Origin of Manufacture, Date of Manufacture, Batch Number and Size.
Please note no torsion forces should be applied to these units.
We also supply DIN 4809 Approved Pump Flexibles.
Please contact Shawston Technical Department for further information.
- Flanges: carbon steel – Drilled PN16 (other flanges Available).
- Nylon re-inforced EPDM rubber body.
- Steel reinforced collars.
- Tie bars: anti-tamper carbon steel.
|CODE||Size (mm)||Installed Length||Material Type||Temperature Limits 0C|
|EXPF16T032||32||130||Nylon Reinforced EPDM||-10 – 100|
|EXPF16T040||40||130||Nylon Reinforced EPDM||-10 – 100|
|EXPF16T050||50||130||Nylon Reinforced EPDM||-10 – 100|
|EXPF16T065||65||130||Nylon Reinforced EPDM||-10 – 100|
|EXPF16T080||80||130||Nylon Reinforced EPDM||-10 – 100|
|EXPF16T100||100||130||Nylon Reinforced EPDM||-10 – 100|
|EXPF16T125||125||130||Nylon Reinforced EPDM||-10 – 100|
|EXPF16T150||150||130||Nylon Reinforced EPDM||-10 – 100|
|EXPF16T200||200||130||Nylon Reinforced EPDM||-10 – 100|
|EXPF16T250||250||130||Nylon Reinforced EPDM||-10 – 100|
|EXPF16T300||300||On Request||Nylon Reinforced EPDM||-10 – 100|
|EXPF16T350||350||On Request||Nylon Reinforced EPDM||-10 – 100|
|EXPF16T400||400||On Request||Nylon Reinforced EPDM||-10 – 100|
