Description

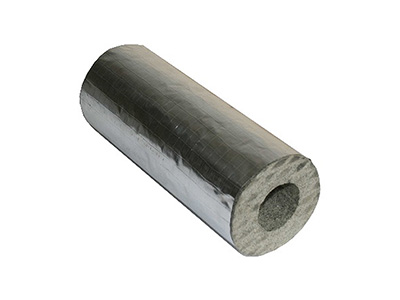

The Firefly 109 Pipe Fire Sleeves are particularly suitable for use in plasterboard partitions, but can be used in blockwork walls and floors. The sleeves do not require any additional metal sleeving. The unique intumescent material is vacuum formed to shape which ensures controlled sealing of the plastic pipe or duct. Suitable for use with Copper, Carbon, Steel and Plastic Pipe.

Product Features and Benefits:

• CE Approved.
• Up to EI120 minutes fire rated in Partitions.
• Up to EI240 minutes fire rated in Blockwork.
• Assessed for installation in: Plasterboard with steel or timber studwork, masonry & brick / block walls & floors.
• Acoustic, Thermal & Vapour Seal.
• Simple & quick to install, no screws or support needed.
• No metal sleeving required.
• Available to fit most common sizes.
• Cost effective alternative to Fire Collars.
• Sleeves come supplied 300mm long.In 90% of cases they can be cut in half giving 2 penetrations per sleeve.
• Not to be used on Domestic Ventilation Pipe.
• Fire Tested to BS EN 1366-3 and BS476.
• Sleeves can be retro fitted to existing pipework.

Suitable Wall and Floor Construction:

• Plasterboard Partition, Concrete, Blockwork or Brick Walls and Floors.
• Profiled Metal Decking.

Suitable for Use With:

• Medium and Heavy Steel, Copper, Carbon, Stainless and Plastics*.
• 15mm to 159mm.
• 15Nb to 150Nb**

_{* Please contact our sales team to confirm which type of plastics the sleeves are suitable to be used with.
** For sizes larger than 150Nb please consult our sales team for further advice.}
