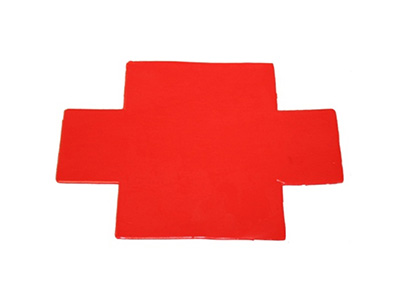

Intumescent Putty Pads

SKU: 1097e9a68859 Category:


Intumescent Acoustic Putty Pads have been developed to maintain the acoustic integrity and fire resistance of plasterboard partitions, where plastic electrical socket boxes penetrate them. They also make a significant contribution to the reduction of air leakage in properties helping reduce energy costs and carbon emissions.

Product Features and Benefits:

  • Provides fire protection.
  • Reduces noise transfer.
  • Pre-cut cross shape ensures hassle free installation.
  • Low smoke emission.
  • Maintenance free.
  • Remains malleable.
  • Long service life.
  • Available for single and double sockets.

Suitable Wall Construction:

Plasterboard Partition.

Suitable for use with:

Metal and Plastic Back Boxes 35mm and 47mm deep.

Fire Testing:

  • Tested in accordance with BS 476:Part 20:1987 and EN1366-3. The pads provide up to 2 hours fire protection.

Acoustic Testing:

  • Measurement of airborne sound insulation was made in accordance with BS EN ISO 140-3:1995.
  • Single number quantities were calculated in accordance with BS EN ISO 717-1 :1997.
  • The putty pads provide a Weighted Sound Reduction (Rw) of up to 67dB.
CODE Description Box Qty.
PFPPPS Single Box Internal Putty Pad 20
PFPPPD Double Box Internal Putty Pad 20
