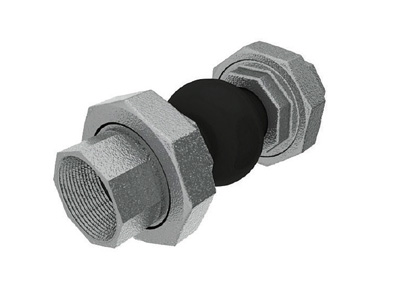

S-Flex Screwed Pump Flexible


S-Flex Pump Flexibles are installed to absorb vibration and noise levels caused by “plant” upon which they are fitted. These are suitable for use on systems carrying chilled and heated water. Please see above for temperature and pressure limits.

D-Flex units are not suitable for use with potable water, water with oil additives, compressed air and food applications.

S-Flex Untied units should not be installed on pumps located on Inertia Bases.

S-Flex units are manufactured from spherical moulded EPDM, which is a soft compound to offer a high isolation efficiency and high noise absorbing properties.

The units are a full bore thus removing pressure drop problems. The EPDM rubber is nylon re-inforced, and has a steel wire re-inforced collar.

Unions BZP coated carbon steel PN16.

S-Flex units have a 10 year design life when used on LTHW systems.

S-Flex units are stamped with origin of manufacture, date of manufacture, batch number and size.

Please note no torsion forces should be applied to these units.

We also supply DIN 4809 approved pump flexibles.

Please contact Shawston Technical Department for further information.

Key Features:

  • Unions: carbon steel.
  • Nylon re-inforced EPDM rubber body.
  • Steel reinforced collars.
CODE Size (mm) Installed Length Material Type Temperature Limits 0C
EXPFS1515200Nylon Reinforced EPDM-10 – 100
EXPFS2020200Nylon Reinforced EPDM-10 – 100
EXPFS2525200Nylon Reinforced EPDM-10 – 100
EXPFS3232200Nylon Reinforced EPDM-10 – 100
EXPFS4040200Nylon Reinforced EPDM-10 – 100
EXPFS5050200Nylon Reinforced EPDM-10 – 100
