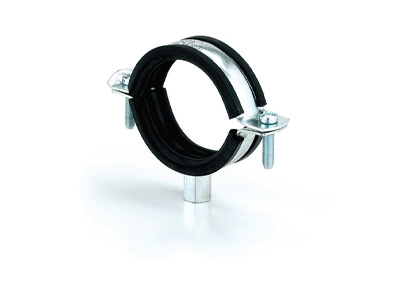

Rubber Lined Pipe Clip
Description
CODE | Pipe Size | Grip Range (mm) | Boss Type | Screw (mm) | Material (mm) |
PCRL015 | 15cu | 13 – 20 | M8/M10 | M5 x M18 | 1 x 20 |
PCRL016-20 | 18mm | 17 – 23 | M8/M10 | M5 x M18 | 1 x 20 |
PCRL022 | 22cu | 21 – 26 | M8/M10 | M5 x M18 | 1 x 20 |
PCRL028 | 28cu | 26 – 35 | M8/M10 | M5 x M18 | 1 x 20 |
PCRL035 | 35cu | 33 – 37 | M8/M10 | M5 x M18 | 1 x 20 |
PCRL042 | 42cu | 40 – 46 | M8/M10 | M5 x M18 | 1.2 x 20 |
PCRL040 | 1 ½” | 48 – 53 | M8/M10 | M5 x M18 | 1.2 x 20 |
PCRL054 | 54cu | 53 – 59 | M8/M10 | M5 x M18 | 1.2 x 20 |
PCRL050 | 2” | 60 – 66 | M8/M10 | M5 x M18 | 1.2 x 20 |
PCRL067 | 67cu | 67 – 77 | M8/M10 | M6 x M25 | 1.5 x 25 |
PCRL076 | 76cu | 75 – 84 | M8/M10 | M6 x M25 | 1.5 x 25 |
PCRL083 | 3” | 87 – 96 | M8/M10 | M6 x M25 | 1.5 x 25 |
PCRL095 | 95mm | 94 – 104 | M8/M10 | M6 x M25 | 1.5 x 25 |
PCRL108 | 108cu | 102 – 111 | M8/M10 | M6 x M25 | 1.5 x 25 |
PCRL100 | 4” | 109 – 119 | M8/M10 | M6 x M25 | 1.5 x 25 |
PCRL129 | 120cu | 122 – 135 | M8/M10 | M6 x M25 | 2 x 25 |
PCRL125 | 133cu | 128 – 139 | M8/M10 | M6 x M25 | 2 x 25 |
PCRL125 | 5” | 135 – 148 | M8/M10 | M6 x M25 | 2 x 25 |
PCRL159 | 159cu | 151 – 164 | M8/M10 | M6 x M25 | 2 x 25 |
PCRL150 | 6” | 158 – 170 | M8/M10 | M6 x M25 | 2 x 25 |
PCRL200 | 200mm | 200mm | M8/M10 | M8 x M30 | 3 x 30 |
PCRL250 | 250mm | 250mm | M12/M16 | M12 x M30 | 4 x 40 |
PCRL315 | 315mm | 315mm | M12/M16 | M12 x M30 | 4 x 40 |
