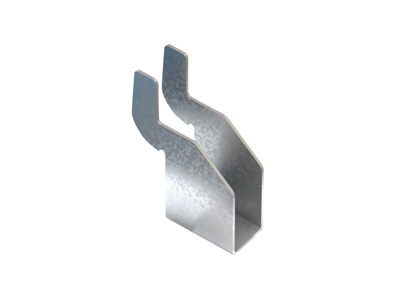

Lindapter Type WF – Webfix
Description
The Webfix – WF for a quick installation
directly from the web of Zed purlins.
CODE | Rod | Safe Working Load (5:1 Factor of Safety) Tensile kN | Max. Purlin Thickness (mm) | Hole ø (mm) | Max Distance X at Angle of 10° | Max Distance X at Angle of 20° | Max Distance X at Angle of 30° |
---|---|---|---|---|---|---|---|
WF10 | M10 | 1.0 | 4 | 18 | 103 | 94 | 74 |
