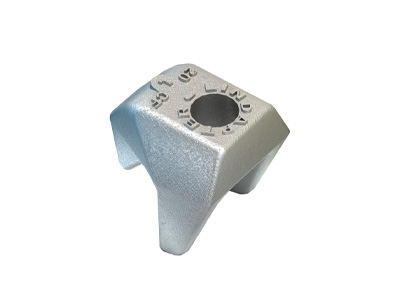

Lindapter Type CF
Description
Hooks over the flange of beams, angles and channels to connect steel sections
that do not face, such as connecting horizontal beams with vertical columns.
| CODE | Bolt | Safe Working Load (5.1 Factor of Safety) | (F.O.S 2:1) Slip Resistance/ 2 Bolts | Tightening Torque Nm | Dimensions | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| Size | Tensile / 1 Bolt (F.O.S 5:1) kN | Painted Steelwork kN | Galv. Steelwork kN | V Clamping Range (mm) | Y (mm) | X (mm) | T (mm) | Width (mm) | ||
| CF12 | M12 | 8.5 | 3.4 | 3.9 | 90 | 6 – 13 | 32 | 14 | 21 – 29 | 46 |
| CF212 | M16 | 8.5 | 3.4 | 3.9 | 90 | 12 – 20 | 39 | 16 | 28 – 37 | 48 |
| CF16 | M12 | 16.0 | 8 | 10 | 240 | 8 – 16 | 44 | 18 | 25 – 33 | 56 |
| CF216 | M16 | 16.0 | 8 | 10 | 240 | 15 – 25 | 50 | 21 | 35 – 47 | 62 |
| CF20 | M20 | 26.3 | 13 | 16 | 470 | 10 – 19 | 53 | 22 | 30 – 41 | 65 |
| CF220 | M20 | 26.3 | 13 | 16 | 470 | 18 – 30 | 64 | 27 | 41 – 55 | 70 |
