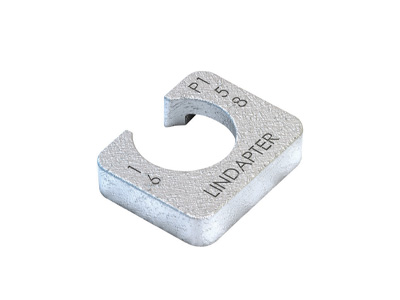

Lindapter P1 & P2 Packing Shims
Description
A packing used to adjust the tail length of the clamp
to meet differing beam flange thicknesses.
| CODE | Bolt Z | Dimensions | |||||
|---|---|---|---|---|---|---|---|
| (P1) | (P2) | Y (mm) |
X (mm) |
(P1)T (mm) |
(P2)T (mm) |
Width (mm) |
|
| P1S08 | P2S08 | M8 | 4 | 10 | 4 | 8 | 21 |
| P1S10 | P2S10 | M10 | 5 | 13 | 5 | 10 | 24 |
| P1S12 | P2S32 | M12 | 6 | 16 | 6 | 12 | 30 |
| P1S16 | P2S16 | M16 | 8 | 21 | 8 | 16 | 35 |
| P1S20 | P2S20 | M20 | 10 | 23 | 10 | 20 | 43 |
| P1S24 | P2S24 | M24 | 12 | 32 | 12 | 24 | 54 |
