Lindapter Type AF – High Friction Clamp

Category:

Description

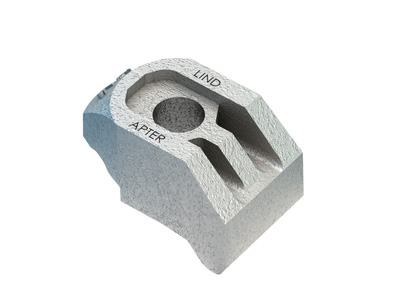

A High Slip Resistance (HSR) clamp with a recessed top to hold the bolt head captive
while the nut is tightened. Washer Type AFW available. The skirt prevents the clamp rotating
during installation. The tail of the AF spans across slotted holes. Suitable for flanges up
to 10°, ideal for S-beams. The clamp can be combined with Type CF.



CODEBoltSafe Working Load
(5.1 Factor of Safety)
(2.1)
Frictional / 2 Bolts
Tightening
Torque Nm
DimensionsTail Length V
ZGradeTensile / 1 Bolt
kN
Painted
Steelwork kN
Galv.
Steelwork kN
Y
(mm)
X
(mm)
Short
(mm)
Medium
(mm)
Type AF
Type AF
with AFW
Width
(mm)
AF12M128.88.53.43.9902727512.5172239
AF16M168.816.08.010.02403537815222749
AF20M208.826.313.016.047040391018253156
AF24M248.84024.030.080048601530324282
